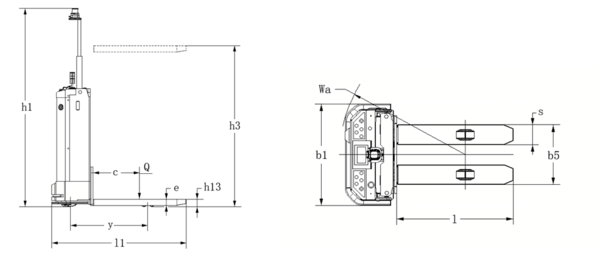

技术规格 Specifications

VLA10M

VLA15M

额定载荷 Load capacity

Q(kg）

1000

1500

车体自重 Service weight

kg

870

850

载荷中心距 Load center

c(mm)

600

600

轴距 Wheelbase

y(mm)

920

920

车体尺寸 Overall dimensions

l1/b1/h1(mm)

1633/962/2350

1658/962/2350

货叉尺寸 Fork dimensions

e/s/l(mm)

72/180/1150

72/180/1150

货叉外间距 Fork spread

b5(mm)

560/680

560/680

跨支腿内宽 Width between support arm

b6(mm)

/

/

低位时货叉高度 Fork height, lowered

h13(mm)

86

86

提升高度 Lift height

h3(mm)

1800

1200

最小转弯半径 Turning radius

Wa(mm)

1180

1180

行驶速度 Travel speed

m/s

0-1.5

0-1.5

定位精度 Positioning accuracy

mm

±10

±10

电池电压/容量 Battery voltage/capacity

V/Ah

24/210

24/210
